Power BI Dataflow – Refresh History
You can find out which entity took the longest to refresh or which entity caused the error in a failed refresh by looking at the refresh history of your dataflow in the Power BI workspace.
Dataflow Series
This post is part of a series on dataflows.
- Create a dataflow
- Set up dataflow refresh
- Endorsement
- Diagram View
- Refresh History
- Create dataflow from Export json file
- Incremental Refresh
YouTube Version
Refresh History List

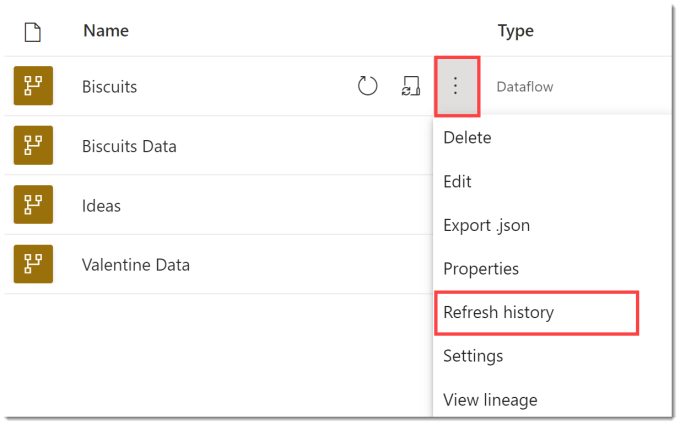

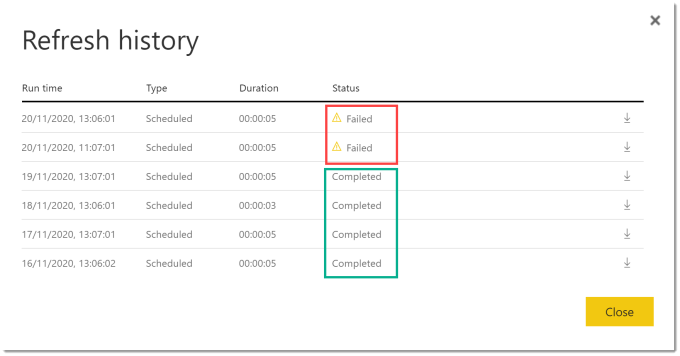

In the workspace, click on the three dots next to the dataflow and from the menu select Refresh History. This will open a dialog that has a row for every refresh.
Every refresh will show when it happened, how long it took and if it completed or failed. In the above image we can see the last 2 refreshes failed but the 4 previous refreshes completed.
Refresh History Files

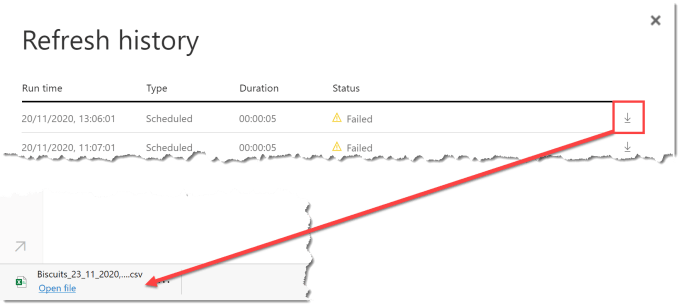

The details of the refresh for each entity that loads from the dataflow can be found by downloading the csv file. You can download the csv file for a refresh by clicking on the down arrow on the right of each refresh row.
Calculating the Refresh Time

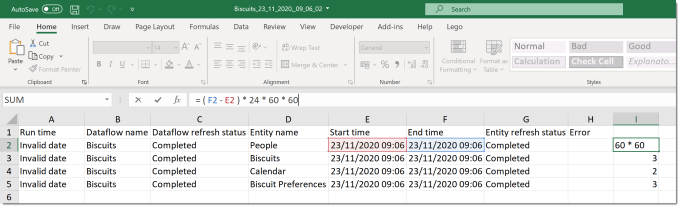

Excel will happily open the CSV file. The first column might say Invalid Date this is due to the Power BI service trying to treat a dd/mm/yyyy formatted date as mm/dd/yyyy. I have reported the issue to Microsoft.
A simple calculation of (End Time – Start Time) will give you the duration in days so in this example I then multiplied it 24*60*60 to give seconds. Adjust the calculation to minutes or hours to fit your durations.
Showing Errors

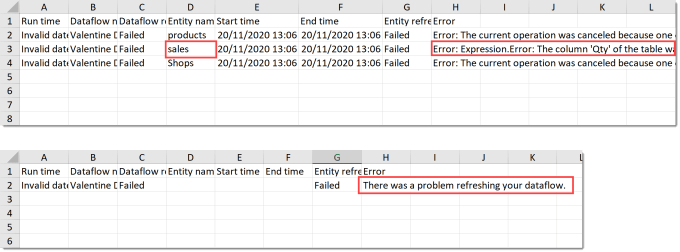

If you download the file of a failed refresh you will either get a single line why the whole refresh failed or details of which entity failed. there are occasions when the error is not clear, for example the second one shown.
In the first example the sales entity has failed due to a problem with the “Qty” column. This causes the other entities’ refreshes to be cancelled.
Conclusion
The Refresh History is an important part of understanding how a dataflow is performing. Hopefully at some point there will be an API to fetch the history directly, last time I looked there wasn’t.
