PowerApps – Function Component

Last modified date

This post is to describe how I solved a problem using a component. The problem was I wanted to have calculation I could reuse. In a more traditional programming environment I would write a function. Components are reusable so it kind of made sense to use one of them as a function component..

Calculation Details

The calculation I wanted to do was convert a decimal number to a hex number. PowerApps doesn’t have a function to do this so I worked out the calculation. I added a text input to take the decimal number and then a label to contain the calculation.

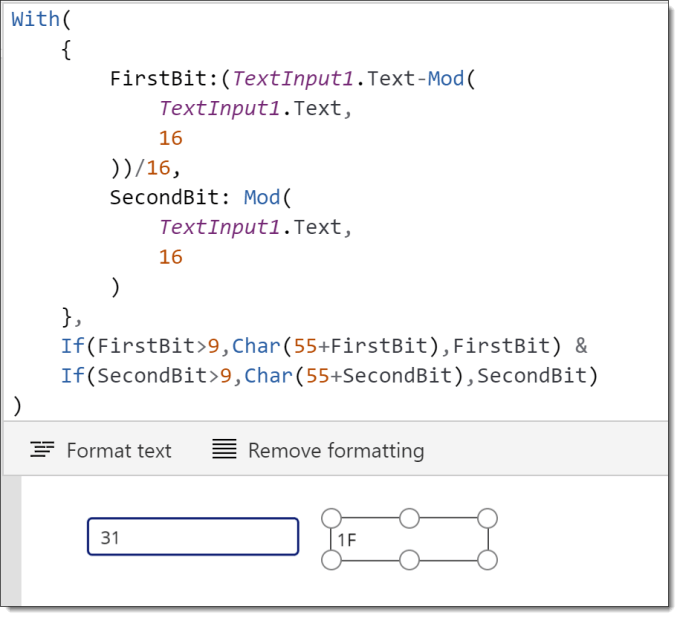

calculation details

Create the Function Component

In my app I had already turned on components and added a new component. Shane Young does a great intro to components found here. I then added 2 custom properties. DEC is the decimal value as an input to my component like a parameter to a function and HEX as the returned value.

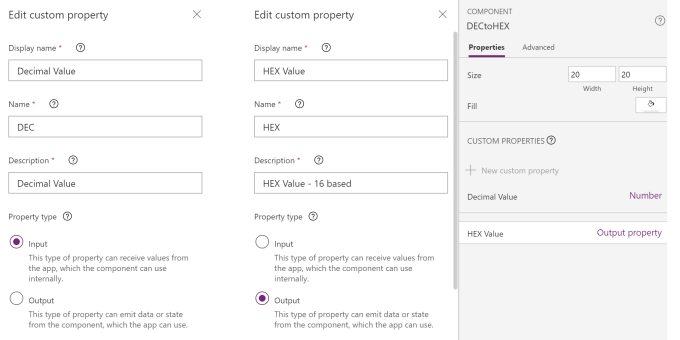

adding custom properties to function component

I then clicked on the HEX Value to enter in a the formula as the following code.

With(
    {
        FirstBit:(DECtoHEX.DEC-Mod(
            DECtoHEX.DEC,
            16
        ))/16,
        SecondBit: Mod(
            DECtoHEX.DEC,
            16
        )
    },
    If(FirstBit>9,Char(55+FirstBit),FirstBit) &
    If(SecondBit>9,Char(55+SecondBit),SecondBit)
)

Using the Function Component

Back on the screen of my app I can use the component using a slider value as the input. I can hide the component as it doesn’t need to be seen.

I needed a HEX value to use in some SVG for an image. In this example I used a slider to determine red value from 0 to 255. I add the component and pass in the slider value into the DEC. I then use the HEX in the SVG code I’m using in an image. See my Introduction to SVG to explain the SVG part.

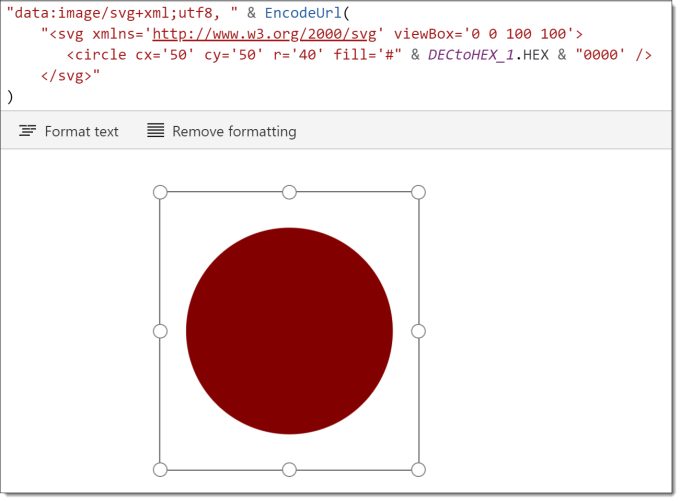

Using HEX value calculated by function component in SVG

I could then add a slider and component for green, blue and transparency to make my image fully adjustable.

Conclusion

Components as function opens many possibilities and as 2 of my favourite PowerApp builders Hiro and Brian Dang use them I’m going to explore them some more.

Update

Thanks to Brian Dang for giving me a tidier version of the calculation using nested WITH functions. So the calculation inside the component is now:

With(
    {
        CalcValue: Mod(DECtoHEX.DEC,16)
    },
    With(
        {
            FirstBit: (DECtoHEX.DEC-CalcValue)/16,
            SecondBit: CalcValue
        },
    If(FirstBit>9,Char(55+FirstBit),FirstBit) &
    If(SecondBit>9,Char(55+SecondBit),SecondBit)
)
